Poltava Interior Single Door Sliding Mechanism by SA Sliding Doors
The Poltava is a high-quality, easy-to-install interior sliding door gear system from SA Sliding Door Sales. Designed for single interior doors between rooms, it delivers smooth, silent operation using nylon guides and hangers running on an aluminium track — no floor channel required with the standard Poltava configuration.
Suitable for timber, timber-framed, and composite doors, the Poltava is a popular choice for bedrooms, studies, living areas, and any interior space where a sliding door is preferred over a swinging door.
Key Features
- Designed for interior single doors between rooms
- Suits timber, timber-framed, and composite doors
- Silent operation — nylon guides and hangers on aluminium track
- One-piece top runner with differential action wheel
- Vertical and lateral adjustment for precise door alignment
- 5mm floor clearance adjustment
- Door-to-wall clearance: 5–15mm
- Floor component: guide only (standard Poltava) or aluminium channel (Poltava 2)
- Easy DIY installation — self-tapping screws supplied

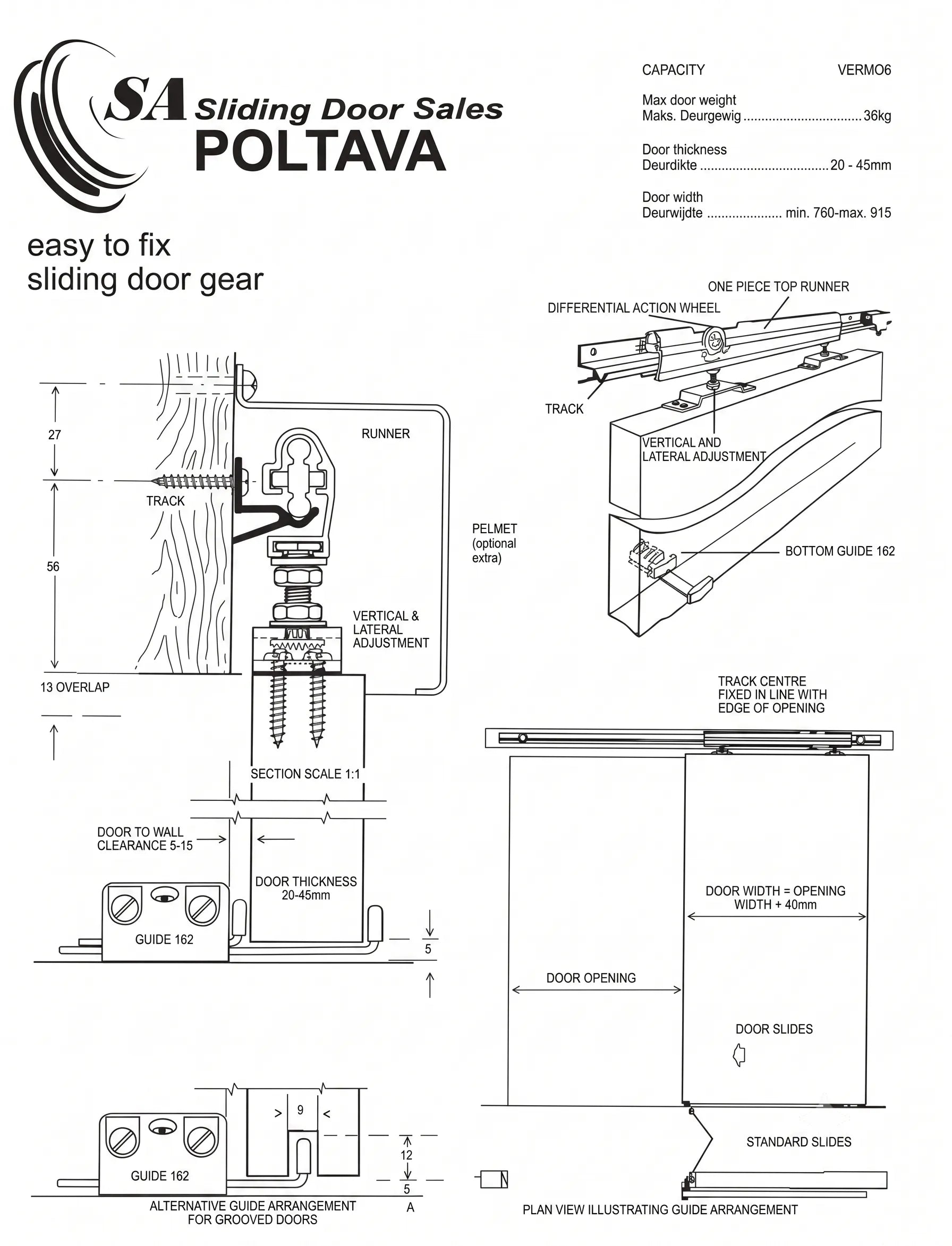

Technical Specifications
-
Model: Poltava (VERMO6)
-
Max door weight: 36kg
-
Door thickness: 20–45mm
-
Door width: 760mm (min) – 915mm (max)
-
Track length: 1750mm
-
Track fixing height: Door height + 56mm
-
Door width required: Opening width + 40mm
-
Top plate spacing: 540mm centred on door
-
Floor guide: Guide 162 (adjustable guide shoes)
-
Application: Interior use only

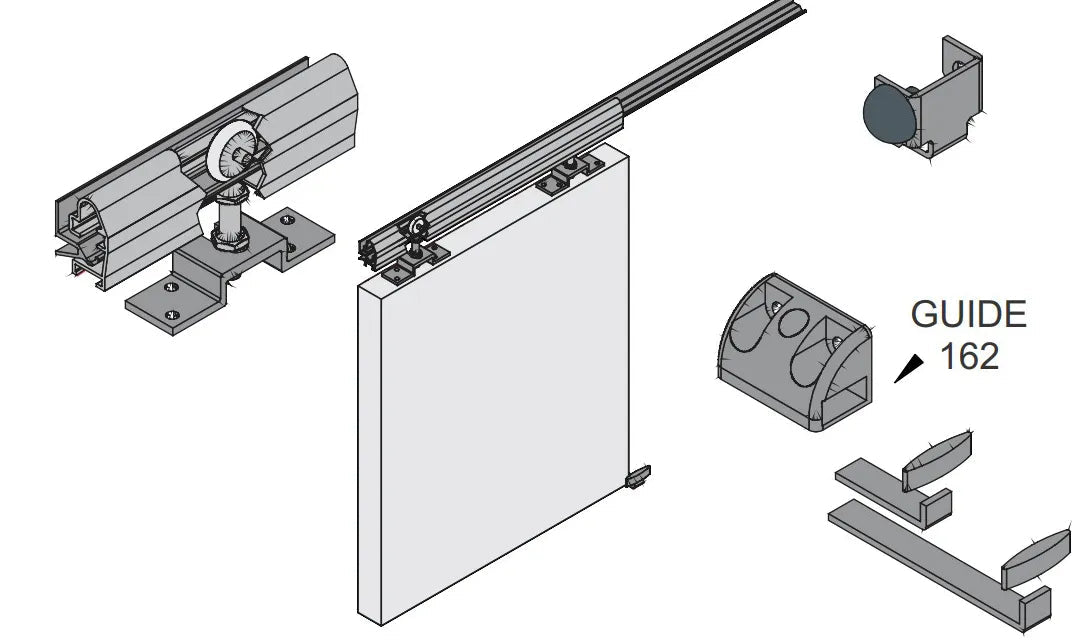

What's Included
- Aluminium track (1750mm)
- One-piece top runner assembly with differential action wheel
- Top plates (face-fixed to door top)
- Bottom guide (Guide 162) with adjustable guide shoes
- End stops
- Self-tapping screws and fixings

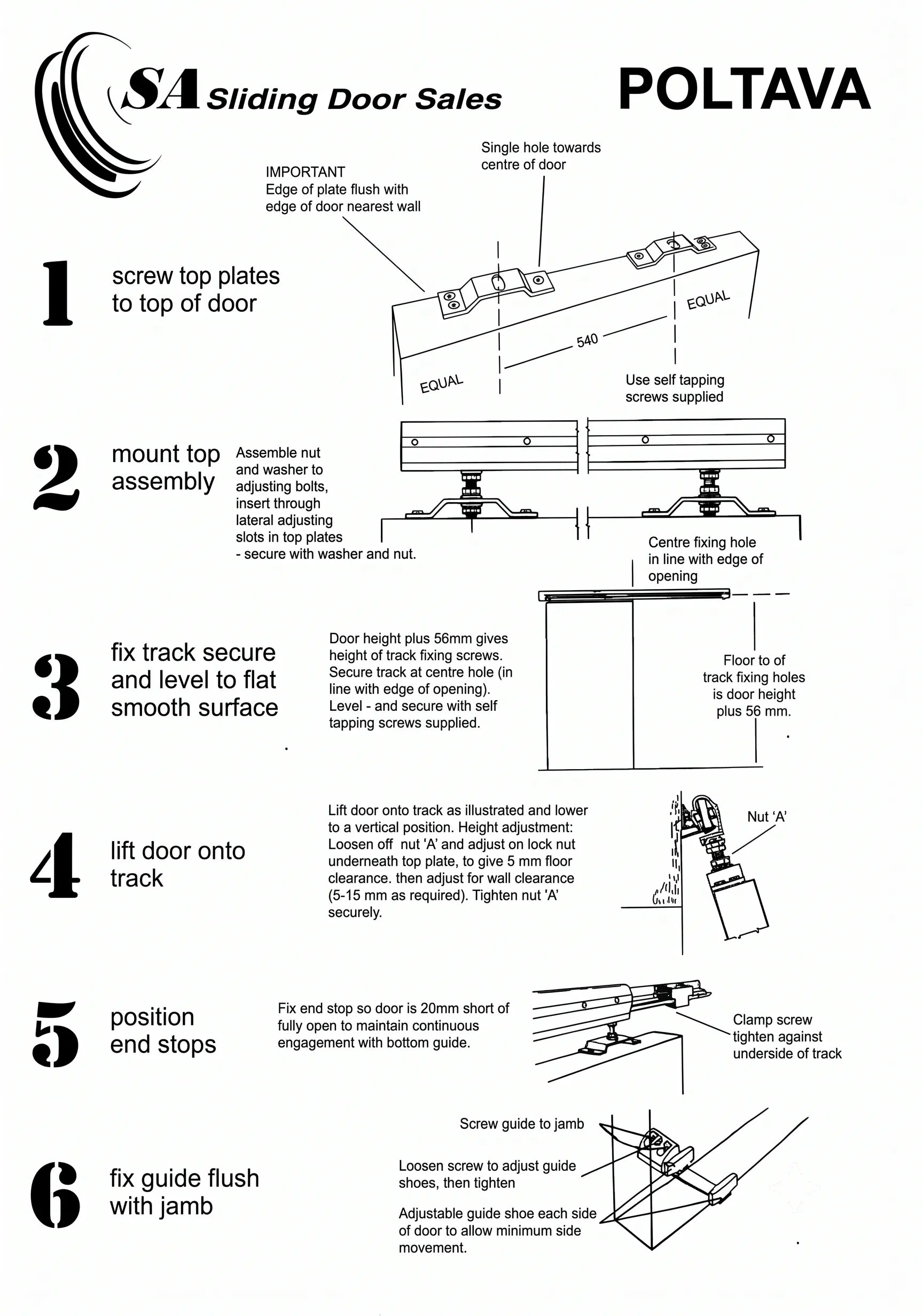

Installation Overview
The Poltava installs in 6 straightforward steps:
- Screw top plates to the top of the door (centred at 540mm spacing, edge of plate flush with door edge nearest wall)
- Mount the top runner assembly — insert through lateral adjusting slots and secure with washer and nut
- Fix the track level to the wall at door height + 56mm, track centre in line with edge of opening
- Lift door onto track and adjust height for 5mm floor clearance using Nut A; adjust wall clearance to 5–15mm
- Position end stops so door is 20mm short of fully open to maintain continuous engagement with the bottom guide
- Fix the bottom guide flush with the jamb; adjust guide shoes each side to allow minimum side movement
Frequently Asked Questions
What is the maximum door weight the Poltava can carry?
The Poltava sliding door gear is rated for doors up to 36kg. Ensure your door does not exceed this weight before installation.
What door sizes does the Poltava suit?
The system accommodates door widths from 760mm to 915mm and door thicknesses from 20mm to 45mm. The door width should be the opening width plus 40mm to ensure adequate overlap.
What is the difference between the Poltava and Poltava 2?
The standard Poltava uses a floor guide only (Guide 162) with no floor channel. The Poltava 2 uses an aluminium floor channel instead. The Poltava is the more common choice for standard interior timber doors.
Does the Poltava require a floor channel?
No. The standard Poltava uses an adjustable bottom guide (Guide 162) that screws to the door jamb — no routing or floor channel is required. This makes it suitable for installations where a flush floor finish is preferred.
Is this suitable for exterior or bathroom doors?
No. The Poltava is designed for interior use only, for doors between rooms. It is not rated for exterior or wet area applications.
Can I install the Poltava myself?
Yes. The Poltava is designed for easy DIY installation. All fixings and self-tapping screws are supplied. The 6-step installation process requires standard hand tools only.
Delivery
Usually in stock. Lead time is 2–3 business days. Nationwide delivery available across South Africa.
