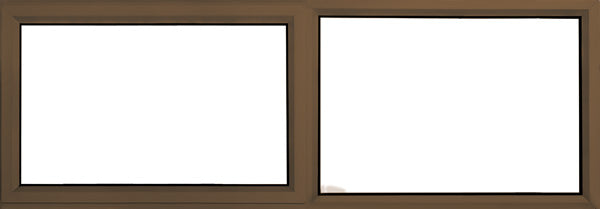

Swartland Kayo PT186L Aluminium Top-Hung Window — 1800 × 600mm
The Swartland Kayo PT186L is an economy aluminium window with a single top-hung opening sash. It is designed for ventilation in residential and building projects where a reliable, low-maintenance aluminium window is required. The sash is positioned on the left-hand side when viewed from outside and is hinged along its top edge, with the bottom edge opening outwards.
Key Specifications
-
Structural opening: 1800mm wide × 600mm high
-
Actual frame size: 1790mm wide × 590mm high
-
Section depth: 28mm
-

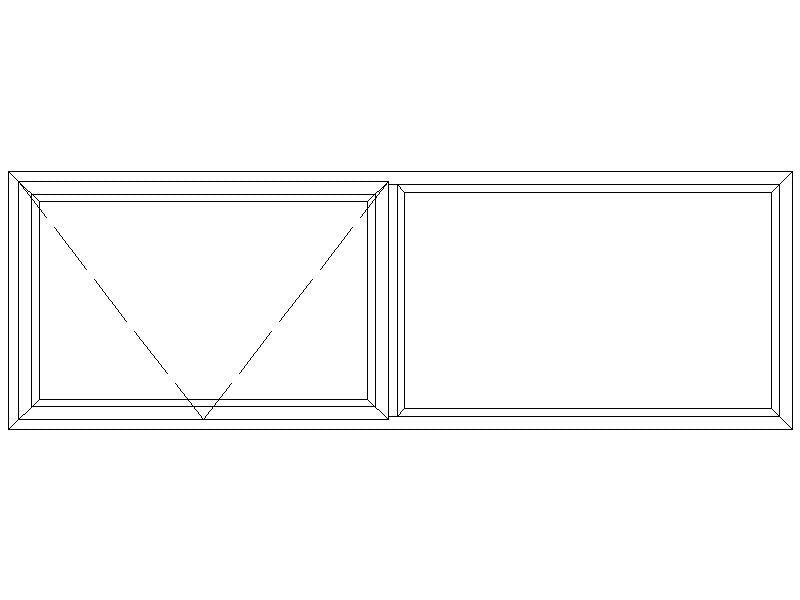

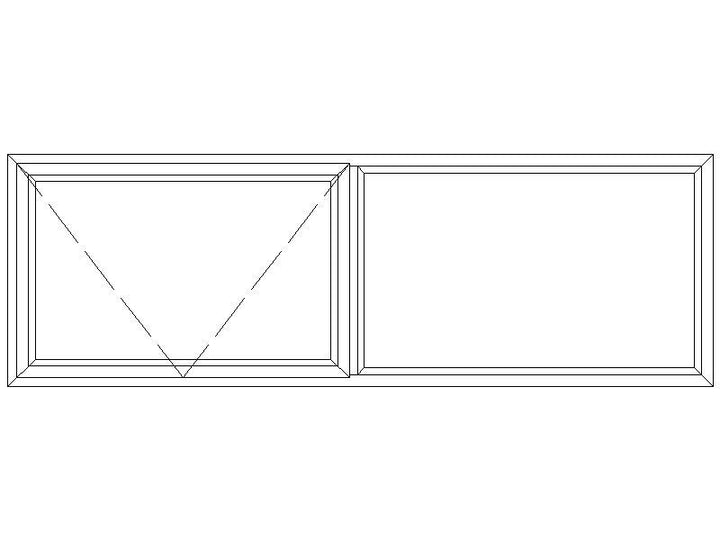

Configuration: Single top-hung opening sash
-
Handle side: Left-hand side when viewed from outside
-
Opening direction: Hinged at the top; bottom edge opens outwards
-
Frame: Anodised aluminium
-
Glazing: Supplied complete with fitted 3mm glass
-
Hinges: Mild steel hinges
-
Handles: Aluminium handles
-
Sealing: Draft seals fitted
-
Fixing: Supplied complete with fixing lugs
-
Corners: Mechanically crimped and sealed
-
Colours: Bronze, Charcoal, Silver and White
Certification and guarantee
- AAMSA certified
- SANS A1 certified
- 1-year manufacturer’s guarantee
Colour options
The PT186L is available in Bronze, Charcoal, Silver and White. Select your preferred colour on this product page.
Why choose the Kayo PT186L?
This top-hung aluminium window combines outward ventilation with a compact 28mm section, fitted 3mm glass, draft seals and mechanically crimped and sealed corners. The anodised aluminium frame is low-maintenance and suitable for projects that require a practical economy window with recognised South African certification.
Frequently Asked Questions
What size structural opening does this window require?
The required structural opening is 1800mm wide × 600mm high.
What is the actual frame size?
The actual window frame measures 1790mm wide × 590mm high, which allows installation tolerance within the 1800mm × 600mm structural opening.
Which side is the opening sash on?
The single opening sash is on the left-hand side when viewed from outside.
Does the PT186L window open inwards or outwards?
The sash is hinged along its top edge, and the bottom edge swings outwards for ventilation.
Does this window come with glass?
Yes. The PT186L is supplied complete with fitted 3mm glass.
What colours are available?
The available colours are Bronze, Charcoal, Silver and White. Select your preferred colour on this product page.
What certifications does this window carry?
The PT186L is AAMSA certified and SANS A1 certified. It also carries a 1-year manufacturer’s guarantee.
Is the aluminium frame anodised?
Yes. The frame is made from anodised aluminium.
What is the lead time?
The lead time is 10–12 days from order confirmation.
Where can I buy the Swartland Kayo PT186L window?
This Swartland Kayo PT186L aluminium top-hung window is available online at doorsdirect.co.za with nationwide delivery across South Africa, including Johannesburg, Cape Town, Durban, Pretoria, Gqeberha, Bloemfontein, towns, rural areas and surrounding regions.
