Commercial Veneer Class A Fire 1511 X 2032

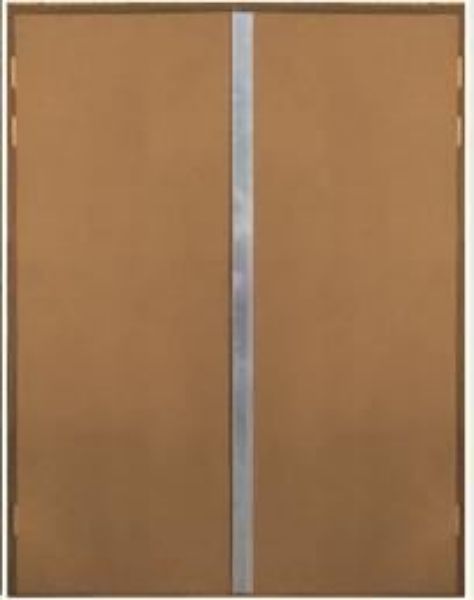

Class A 60-Minute Fire Rated Commercial Veneer Double Doors

These pre-hung Class A fire double doors combine certified 60-minute fire protection with the warmth and character of a commercial veneer finish across a wide opening. Ideal for offices, hotels, and commercial developments where fire compliance meets a higher aesthetic standard. Pre-hung in a double-rebated mild steel frame with stainless steel hinges, they arrive ready to install.

Key Features

• Class A fire rated – 60-minute fire resistance
• Double door configuration – wide opening for commercial and high-traffic use
• Commercial veneer door skins – suitable for oiling or staining
• Pre-hung in a double-rebated mild steel frame with stainless steel hinges
• 2 concealed edges per leaf for a clean, professional appearance
• Steel frame suitable for a 230mm wall – 1.6mm mild steel with 25mm x 50mm rebates
• Red oxide primer applied to frame
• Available with 22mm screed or no-screed finish
• Conventional drywall fixing compatible
• Supplied untreated – ready for your specified oil or stain
• Opens outwards as standard
• Custom sizes available on request

Specifications

• Door Size (pair): 1511 x 2032 x 50mm
• Overall Frame Size (H x W x D): 2064 x 1575 x 230mm
• Fire Rating: Class A – 60 minutes (1 hour)
• Configuration: Double doors (two leaves)
• Frame Material: 1.6mm mild steel, red oxide primed
• Hinges: Stainless steel
• Skin Finish: Commercial veneer – untreated, suitable for oiling or staining
• Wall Thickness: Suitable for 230mm walls
• Opening Direction: Outward as standard
• Lead Time: 14–21 working days

Custom Sizes

Non-standard door sizes are available on request. Contact us to discuss your project requirements and lead times for custom-made fire double doors.

Certification & Fire Test Details

This fire door assembly has been independently tested and classified in accordance with South African national standards:

• Test Authority: FIRELAB cc, Pretoria
• Classification Standard: SANS 1253 (fire door sets)
• Test Method: SANS 10177-2 (fire resistance tests for building elements)
• Classification Achieved: SANS 1253 – Class A (60-Minute Fire Door Assembly)
• Certificate Reference: FTC 25/098 (valid until December 2030)
• Full Test Report: FTC 20/159 (available on request)

Verified Fire Performance:

• Stability (R): Maintained for 60 minutes
• Integrity (E): Maintained for 60 minutes
• Insulation (I): Maintained for 60 minutes

Tested Assembly: Single-leaf door (2028 x 817mm) with MGO chipboard composite core and Meranti hardwood edging, Masonite facing, mounted in a steel frame with 3 hinges and a Geze 702B 3-point push bar. Certified for use as an Escape/Exit Door.

Official fire test certificate available on request for architects, fire consultants, inspectors, and insurers (FIRELAB Ref: FTC 25/098).

Typical Applications

Suitable where a 60-minute (1-hour) fire-rated door is required under South African building regulations (SANS 10400-T), including:

• Stairwells and escape routes in commercial and residential buildings
• Fire compartment boundaries in offices, retail, and hospitality developments
• Corridors and lobbies requiring SANS 1253 Class A compliance
• Areas where a 60-minute fire barrier is specified by a fire engineer or building inspector

Installation note: The Class A rating is valid only when installed as a complete assembly equivalent to the tested configuration — including the matching steel frame, 3 hinges, and a certified Geze 702B 3-point push bar or approved equivalent door closer/lockset.

Frequently Asked Questions

What is a Class A fire door?

A Class A fire door provides 60 minutes (1 hour) of fire resistance. In South Africa, Class A fire doors are classified to SANS 1253 and tested to SANS 10177-2. This assembly achieved R60/E60/I60 — 60 minutes of structural stability, flame integrity, and thermal insulation.

What does R60/E60/I60 mean?

These are the three fire resistance criteria: Stability (R) – the door remains structurally intact for 60 minutes; Integrity (E) – no flames or hot gases pass through for 60 minutes; Insulation (I) – the unexposed face temperature remains within limits for 60 minutes.

Where are Class A fire doors required?

Class A fire doors are typically required in stairwells, escape corridors, and between fire compartments in commercial buildings, hotels, hospitals, and multi-storey residential developments. Requirements are governed by SANS 10400-T and your project’s fire strategy.

Do these fire doors come pre-hung?

Yes. These double fire doors are supplied pre-hung as a complete set in a double-rebated mild steel frame with stainless steel hinges, ready for installation.

Can I get a custom size?

Yes. Custom sizes are available on request with a lead time of 14–21 working days. Contact us with your opening dimensions to discuss your requirements.

What finish options are available?

These double doors are supplied with a commercial veneer skin, untreated and ready for oiling or staining to your preferred finish.

Can I get the test certificate?

Yes. Certificate FTC 25/098 (FIRELAB cc, valid until December 2030) and full test report FTC 20/159 are available on request.
