Elba Grooved Supawood Fire Door 813×2032mm – Class E 30-Minute Fire Rating

Class E 30-Minute Fire Rated Elba Grooved Supawood Door Blank

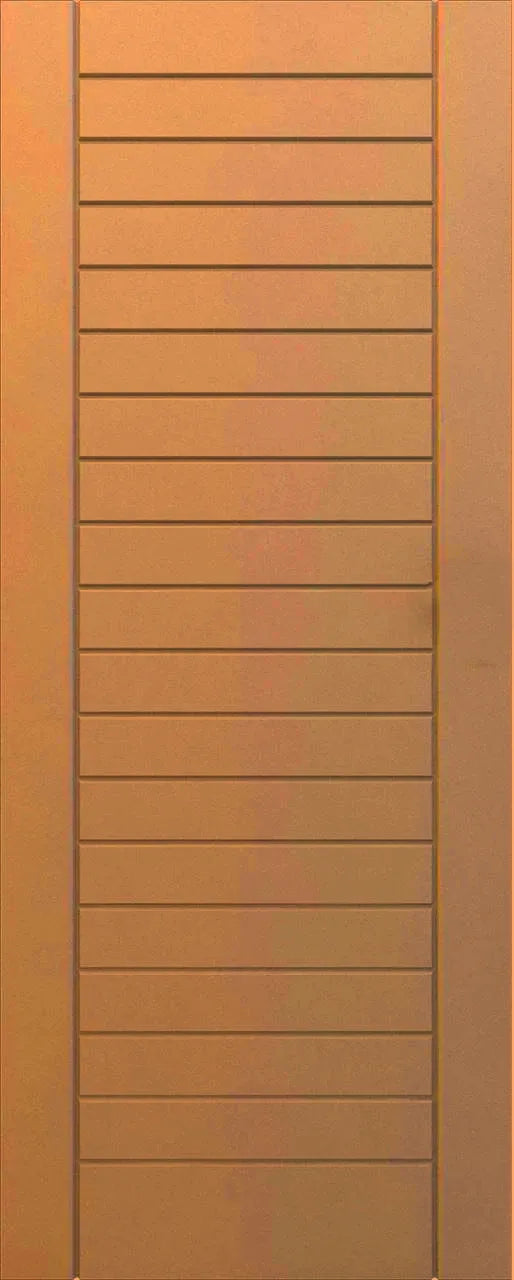

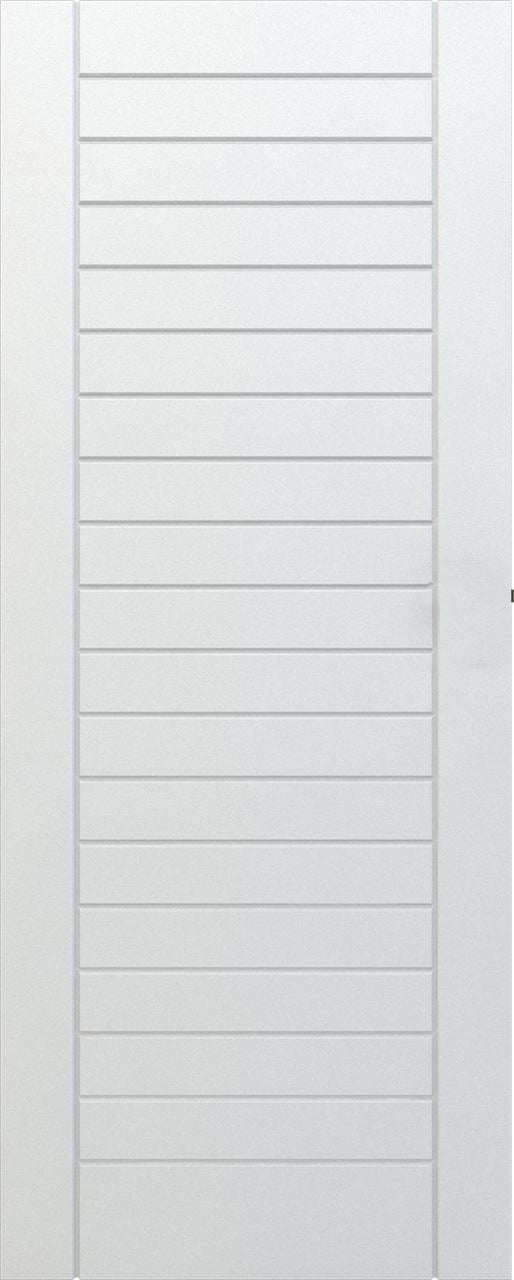

The Elba fire door blank combines certified 30-minute fire protection with a refined grooved design that blends contemporary and traditional aesthetics. Six-millimetre Supawood (MDF) skins feature two vertical grooves running the full height of the door — simulating traditional stiles — with closely-spaced narrow horizontal grooves with a deep V-profile filling the central panel. The result is a door that feels both modern and familiar. The solid core delivers excellent acoustic properties alongside fire resistance, making it a practical choice for noise-sensitive spaces such as TV rooms, home offices, and bedrooms. Supplied raw and unpainted, ready for your specified finish. Available in standard 2032mm height or increased to 2400mm.

Key Features

• Class E fire rated – 30-minute fire resistance
• 6mm Supawood (MDF) door skins – smooth, suitable for painting
• Two vertical grooves simulating traditional stiles, with narrow horizontal grooves and deep V-profile in the central panel – Elba design
• Solid core construction – excellent acoustic/noise insulation properties
• Supplied raw – not painted, ready for your specified finish
• Available in 2032mm or 2400mm height
• Interior use
• Custom sizes available on request

Specifications

• Door Width: 813mm
• Door Height: 2032mm (standard) or 2400mm (variant)
• Fire Rating: Class E – 30 minutes
• Door Skins: 6mm Supawood (MDF) – raw, suitable for painting
• Core: Solid core
• Design: Two vertical stile grooves with narrow horizontal deep V-profile grooves in central panel (Elba profile)
• Application: Interior
• Lead Time: 14–21 working days (2400mm variant: approx. 3 weeks)

Custom Sizes

Non-standard door sizes are available on request. Contact us at info@doorsdirect.co.za for pricing — custom doors are supplied unpainted.

Certification & Fire Test Details

This fire door has been independently tested and classified in accordance with South African national standards:

• Test Authority: FIRELAB cc, Pretoria
• Classification Standard: SANS 1253 (fire door sets)
• Test Method: SANS 10177-2 (fire resistance tests for building elements)
• Classification Achieved: SANS 1253 – Class E (30-Minute Fire Door Assembly)
• Certificate Reference: FTC 25/048 (valid until July 2030)
• Full Test Report: FTC 20/059 (available on request)

Verified Fire Performance:

• Stability (R): Maintained for 30 minutes
• Integrity (E): Maintained for 30 minutes
• Insulation (I): Maintained for 30 minutes

Tested Assembly: Single-leaf door (2088 x 925mm) with MGO wood composite core, mounted in a wood frame with 3 hinges. Certified for use as a Class E door opening inwards.

Official fire test certificate available on request for architects, fire consultants, inspectors, and insurers (FIRELAB Ref: FTC 25/048).

Typical Applications

Suitable where a 30-minute (Class E) fire-rated door is required under South African building regulations (SANS 10400-T), including:

• Internal room and apartment doors in residential developments
• TV rooms, home offices, and bedrooms where acoustic performance is also important
• Office and commercial interior partitions requiring fire separation
• Areas where a 30-minute fire barrier is specified by a fire engineer or building inspector
• Applications requiring SANS 1253 Class E compliance

Installation note: The Class E rating is valid only when installed as a complete assembly equivalent to the tested configuration — including a compatible wood frame and 3 hinges. This door is certified for inward-opening installations only.

Frequently Asked Questions

What is a Class E fire door?

A Class E fire door provides 30 minutes of fire resistance. In South Africa, Class E fire doors are classified to SANS 1253 and tested to SANS 10177-2. This assembly achieved R30/E30/I30 — 30 minutes of structural stability, flame integrity, and thermal insulation.

What does R30/E30/I30 mean?

These are the three fire resistance criteria: Stability (R) – the door remains structurally intact for 30 minutes; Integrity (E) – no flames or hot gases pass through for 30 minutes; Insulation (I) – the unexposed face temperature remains within limits for 30 minutes.

Where are Class E fire doors required?

Class E fire doors are typically required for internal room doors in residential buildings, apartments, and commercial interiors where a 30-minute fire separation is specified. Requirements are governed by SANS 10400-T and your project's fire strategy.

Is this door supplied pre-hung?

No. This product is a door blank supplied without a frame. It must be installed in a compatible wood frame with 3 hinges to achieve the certified Class E fire rating.

Can this door open outwards?

No. The Class E certification applies to inward-opening installations only, as per the tested configuration.

Is the 2400mm height available?

Yes. Select the 2400mm height variant on this product page. Lead time for the 2400mm variant is approximately 3 weeks.

What finish options are available?

This door is supplied raw and unpainted, ready for painting to your specified colour or finish.

Can I get the test certificate?

Yes. Certificate FTC 25/048 (FIRELAB cc, valid until July 2030) and full test report FTC 20/059 are available on request.
