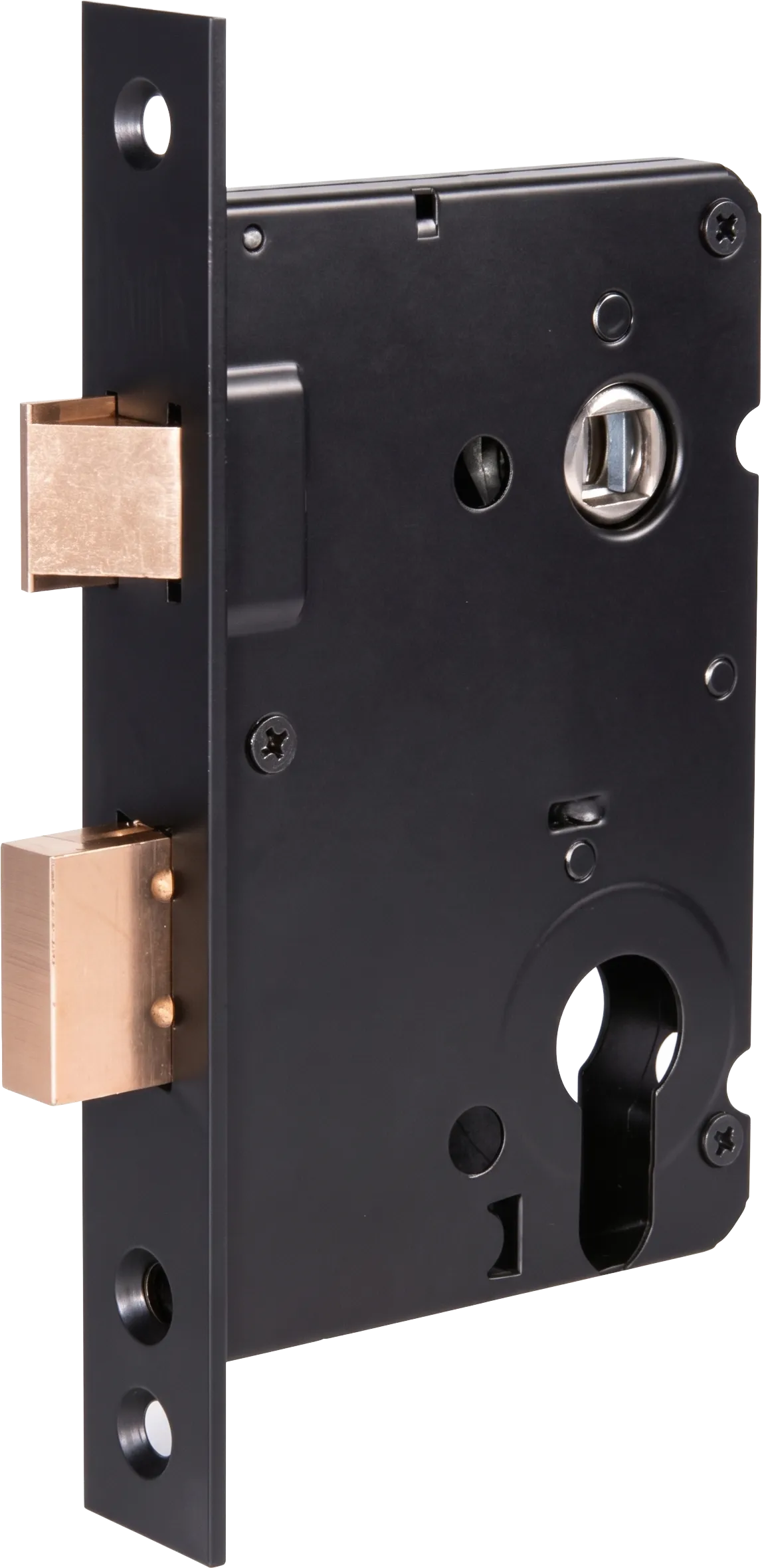

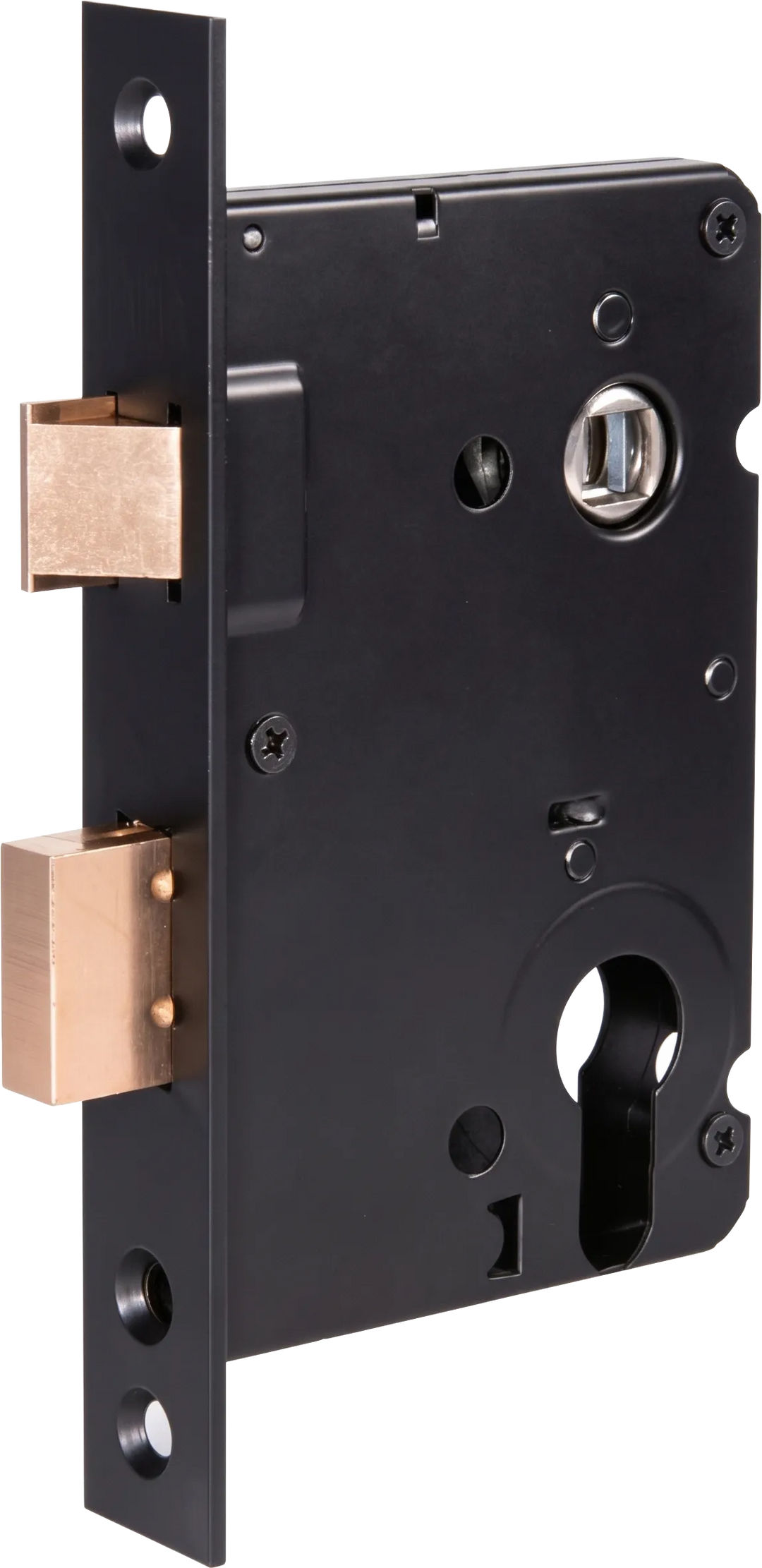

TAURUS Matt Black Cylinder Sash Lock for Timber Doors
Coordinate your timber door hardware with this TAURUS matt black cylinder sash lock. The latch can be operated by either a lever handle or the cylinder, while the cylinder operates the single-throw deadbolt. A 57mm backset and 61mm hole centres define the key fitting measurements.
Specifications
- Application: timber doors
- Finish: matt black
- Listed material: grade 304 stainless steel
- Forend and striker: stainless steel
- Backset: 57mm
- Hole centres: 61mm
- Follower: 8 × 8mm
- Cylinder requirement: Euro-profile cylinder with a 15mm-radius cam
- Latch operation: lever handle or cylinder
- Deadbolt operation: cylinder-driven, single-throw
- Lock-case height: 116mm
- Overall case depth: 76mm
- Forend dimensions: 152.5 × 22mm
- Deadbolt projection: 14mm
Included Components
- 1 × Lock body
- 1 × Striker
- 1 × Pack of fixing screws
Complete Your Installation
Pair this sash lock with the TAURUS Matt Black Euro-Profile Thumbturn Cylinder 60mm (30/30) for key operation on one side and thumbturn operation on the other. Check that the 30/30mm cylinder length suits your door thickness and fitted hardware.
Fitting Guidance
Check the backset, hole centres, follower size and cylinder cam specification against your door and chosen hardware before fitting. Select cylinder length to suit the door thickness and fitted hardware.
Frequently Asked Questions
Which doors does this sash lock suit?
This TAURUS cylinder sash lock is intended for timber doors.
What do the 57mm and 61mm measurements mean?
The backset is 57mm and the hole centres measure 61mm. These are fitting measurements, not the overall lock-case dimensions.
Which cylinder does this lock use?
It requires a Euro-profile cylinder with a 15mm-radius cam. Select cylinder length to suit the door thickness and fitted hardware.
How do the latch and deadbolt operate?
The latch is operated by either the lever handle or the cylinder. The deadbolt is cylinder-driven with a single-throw action. The follower measures 8 × 8mm.
What are the fitting dimensions?
The lock-case height is 116mm, the overall case depth is 76mm and the forend measures 152.5 × 22mm. The deadbolt projection is 14mm.
What is included?
One lock body, one striker and one pack of fixing screws are included.
What finish does this lock have?
The lock has a matt black finish, with a stainless steel forend and striker.
